SEC. 01 / Background

Why Well Mapping Matters

Whether you're a homeowner curious about your private well, a landowner planning construction, or a professional driller researching geology, knowing where wells are—and how deep they go—is fundamental. Historically, that meant pulling paper logs from county offices. Today, an interactive water well depth map puts millions of records a click away.

DrillerDB aggregates state and county well reports into one seamless viewer, letting you search for wells near your location and see precise well depth records, and even download original logs—no agency-hopping required. The sections below answer the most-searched queries about well location, depth, and record retrieval.

SEC. 02 / Depth Estimation

How Deep Is My Well by ZIP Code?

Groundwater conditions vary, so two wells just miles apart can differ by hundreds of feet in depth. The quickest way to estimate your well's depth is to review neighboring well logs. Enter your ZIP into the DrillerDB map, click surrounding wells, and compare total depth values. If several homes in your subdivision draw water at 240 ft, your well is likely similar.

For a definitive answer, locate your specific well record. Every map popup lists the drilled depth—often alongside static water level and yield. If your well predates digitisation, a licensed contractor can measure it manually, but most modern wells already have an online log.

Planning a well at a location with no existing record nearby? The free Geology Estimator predicts depth and subsurface layers from surrounding geology - no existing well required.

Want the water table depth too? The free Water Table Depth Lookup reports the static water level and typical well depth for your address from nearby recorded wells.

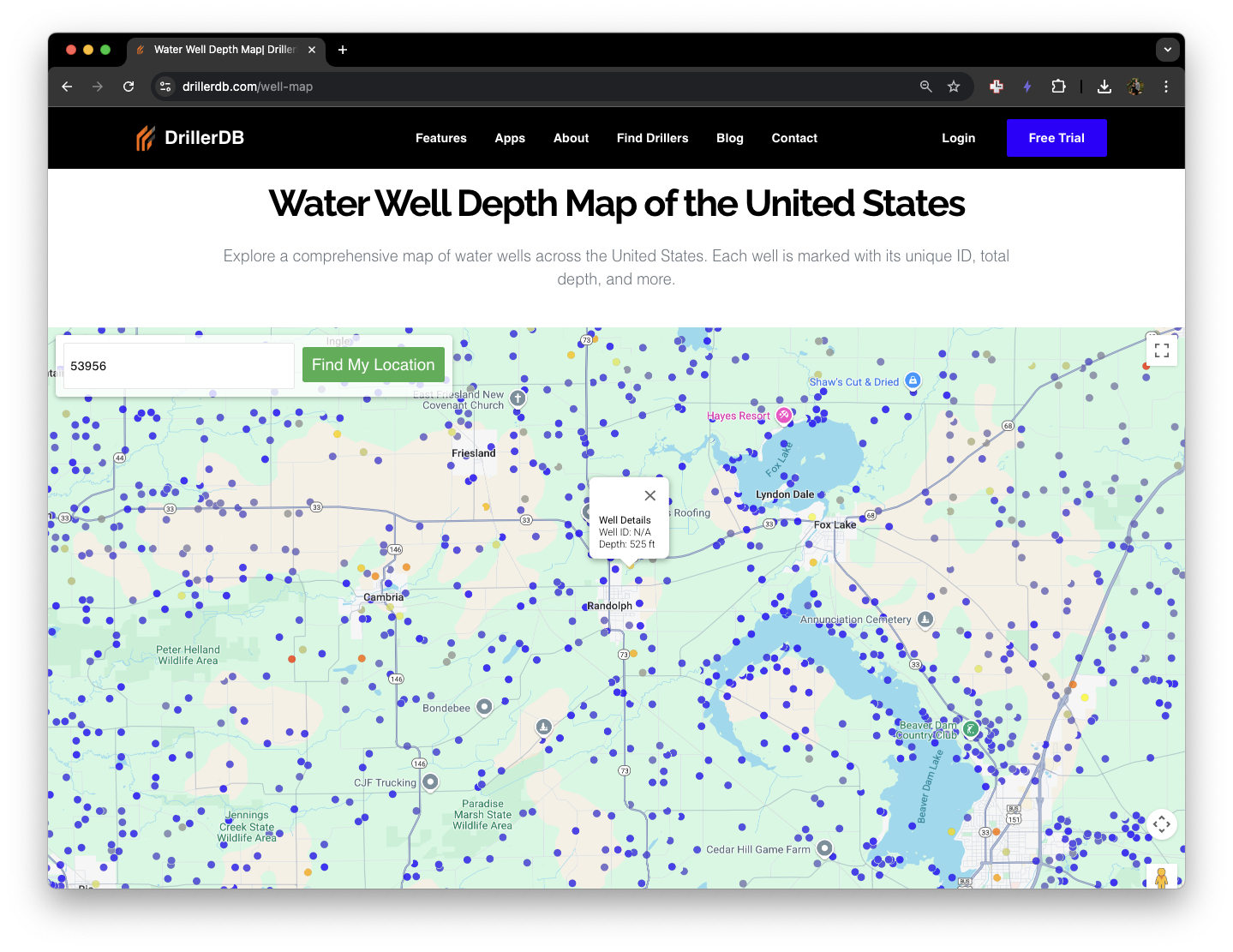

Colour-coded well depths mapped across a ZIP code — Wells colour-coded by drilled depth

Free Tool

Don't have an existing well? Get a depth prediction.

If you're planning a new well, our free Geology Estimator predicts subsurface layers and likely drilling depth for any U.S. address - no existing well record needed. It analyzes nearby well logs and returns a formation-by-formation estimate in about 60 seconds.

Try the Free Estimator

SEC. 03 / Local Data

Average Well Depth by State

Wondering about the average well depth in your state? The table below lists the typical (mean) drilled depth of water wells in every U.S. state, computed from millions of public well-completion records in the DrillerDB database. It shows how deep wells are typically drilled in each state, alongside how many records we have on file. Local geology can shift these figures by hundreds of feet, so use them as regional baselines - then open the well map to inspect the exact records behind each number.

Average (typical) water well depth in feet and number of well records on file for each U.S. state, from the DrillerDB database.
State	Typical Depth (ft)	Wells on Record
Alabama	Limited data	38,408
Alaska	138	40,601
Arizona	331	240,008
Arkansas	217	96,044
California	229	1,050,979
Colorado	245	656,114
Connecticut	378	7,926
Delaware	150	173,502
Florida	123	1,839,284
Georgia	358	15,591
Hawaii	Limited data	5,300
Idaho	223	207,834
Illinois	159	390,473
Indiana	108	414,953
Iowa	164	487,059
Kansas	91	313,236
Kentucky	86	105,714
Louisiana	186	218,702
Maine	266	94,685
Maryland	221	466,819
Massachusetts	243	127,011
Michigan	113	1,170,091
Minnesota	156	404,063
Mississippi	260	181,279
Missouri	355	194,670
Montana	162	295,732
Nebraska	164	266,626
Nevada	218	144,782
New Hampshire	367	111,532
New Jersey	100	104,999
New Mexico	240	277,209
New York	211	144,498
North Carolina	255	117,857
North Dakota	164	110,136
Ohio	104	872,000
Oklahoma	139	243,801
Oregon	141	594,331
Pennsylvania	181	417,259
Rhode Island	326	2,021
South Carolina	336	14,146
South Dakota	319	78,246
Tennessee	224	175,053
Texas	226	704,394
Utah	332	91,223
Vermont	302	120,070
Virginia	223	19,937
Washington	74	1,165,043
West Virginia	Limited data	12,810
Wisconsin	140	870,761
Wyoming	417	214,104

Typical depth is the mean completed-well depth from each state's public well-log records. States marked "Limited data" (Alabama, Hawaii, West Virginia) have samples dominated by oil-and-gas logs or too few residential wells to publish a reliable average, so only the record count is shown.

SEC. 04 / Field Procedure

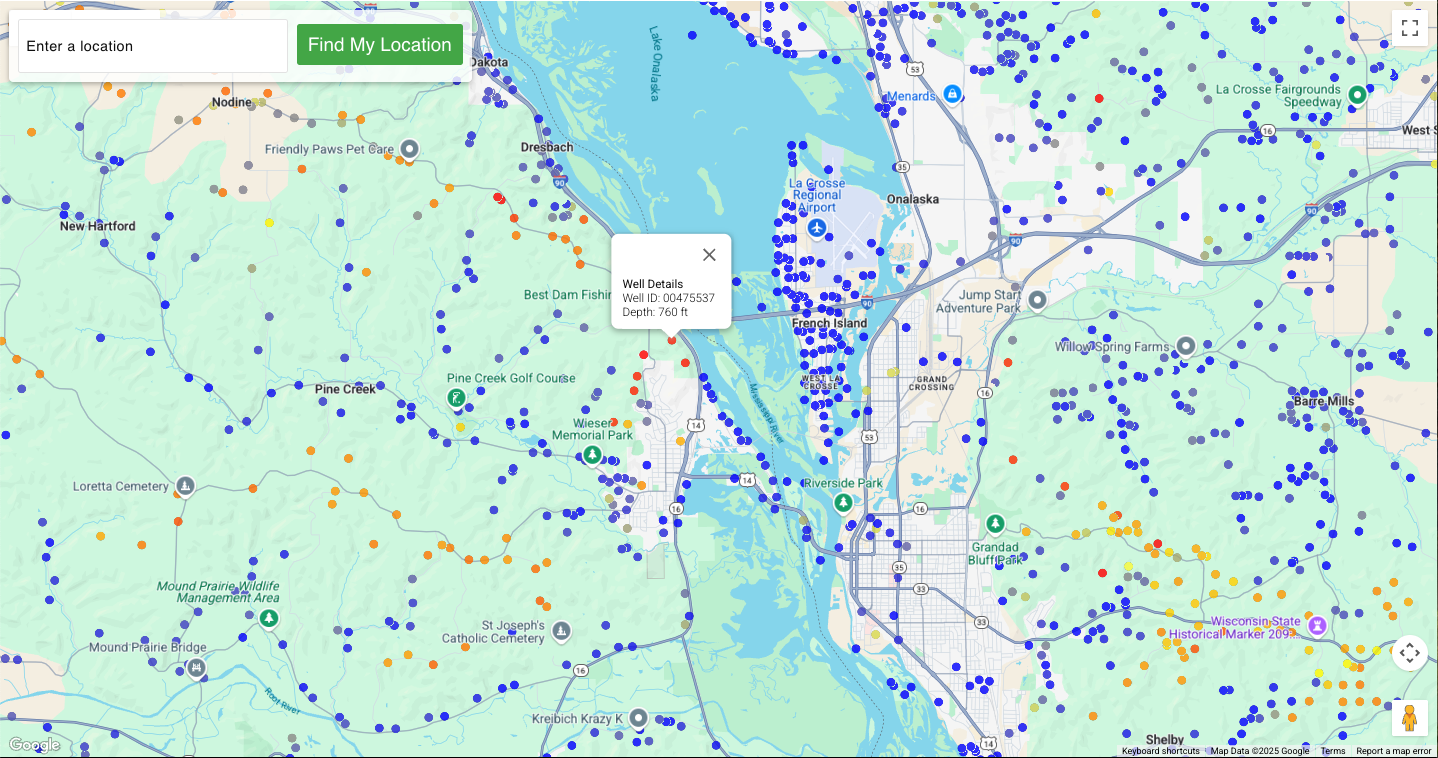

Using the DrillerDB Interactive Map

Three simple steps to access nationwide well data

STEP 01

Search Any Address or ZIP

Open the map, type an address, or click "Find My Location." Wells instantly plot on screen.

STEP 02

Click a Well Marker

Each marker reveals the well's ID, total depth, drill date, and often a link to the PDF log.

STEP 03

Toggle Depth Layers

Depth layers colour wells to visualise shallow versus deep aquifers—ideal for regional groundwater insight.

Open Interactive Map

No download · Works on any device

SEC. 05 / Records Retrieval

How to Find Well Records Online

Licensed drillers file a well completion report—commonly called a well log. DrillerDB centralises these documents, making them easily accessible online. You have two convenient options:

Option 1

Interactive Map

Click a well on the interactive map and look for "View Well Report." Perfect for exploring multiple wells in an area.

Option 2

Direct Search

Use our Find Well Record tool to search directly by address. Ideal when you need a specific well log quickly.

Both methods give you access to construction details, geology, water levels, and yield tests. No need to chase county well records; if it's digitised, it's already in DrillerDB.

Need work done?

Talk to a licensed well driller in your state

Browse the DrillerDB directory of verified water-well contractors in all 50 states. Compare ratings, licensing, years in business, and request quotes directly.

Find a Well Driller

Water quality

Found your well? Now test what's in the water

No utility tests a private well — that responsibility falls on the owner. Compare certified mail-in lab kits, see exactly what to test for, and get results without leaving home.

Test your well water What should I test for?

SEC. 06 / Questions

Frequently Asked Questions

Common questions about well depth and location mapping

01How deep is my well by ZIP code?

Depth varies with local geology, but you can estimate by reviewing neighbouring well records in your ZIP on the DrillerDB map. Enter your ZIP, click nearby wells, and the popup shows total depth and static water level values.

02How can I tell how deep my well is?

Check your original well completion report first. If it's missing, locate your well on the DrillerDB map by address or coordinates; its record lists the drilled depth. A contractor can physically measure if no record exists.

03How can I find out how deep my well is?

Same process: search the map, open the well record, or contact your state's water-well agency for a copy of the log. DrillerDB consolidates those records online.

04What is a water well depth map?

A depth map visualises wells colour-coded by their total depth, offering a quick groundwater overview. DrillerDB lets you toggle depth layers nationwide.

05What is a well depth map?

It's another term for a water-well depth map—both show drilled depths at a glance. Use the DrillerDB well depth map layer to compare shallow and deep aquifers in seconds.

06What is a well viewer / water-well viewer?

A web-based interface (like DrillerDB) that displays well points, attributes, and documents so users can explore groundwater data interactively.

07How to find well records?

Open the DrillerDB interactive map, search your area, click a well marker, and choose "View Well Report." The PDF log downloads instantly—no courthouse visit required.

08How to find well records online?

Use the same process—DrillerDB is an online water-well search platform that aggregates state and county logs in one place.

09What are county well records?

Older wells may only be filed at county level. DrillerDB indexes those legacy records where digitised, so you can search by county name or zoom the map.

10Is there a Michigan water well viewer or Texas groundwater viewer?

Yes—state sites exist, but DrillerDB aggregates Michigan, Texas, and dozens of other state datasets, saving you the hassle of switching websites.

11What is a water-table depth map for Texas by ZIP code?

DrillerDB's depth layer shows drilled depths and static water levels across Texas. Enter your ZIP to visualise approximate groundwater depth in your area.

12What is a well location map?

A well location map displays exact coordinates of water wells. The DrillerDB well location map layers those points with depth, geology, and log downloads to create a full water-well search tool.

13What is a water well search?

Water-well search refers to querying a database to find wells near a location. DrillerDB's search bar lets you input address, GPS, parcel number, or ZIP to locate wells instantly.
