Groundwater – the water found beneath the Earth’s surface in soil and rock – is one of our most vital natural resources. In the United States, groundwater supplies about 37% of the water used by public water systems and over 90% of rural home water supply. For water and drilling professionals like hydrogeologists, contractors, and planners, understanding aquifers and groundwater is crucial for managing wells and water systems. This blog post explores what aquifers are, the types of aquifers, how groundwater is stored and moves, regional examples of groundwater abundance and quality, the importance of recharge areas and sustainable management, and tips for well owners and professionals to understand their local aquifers.

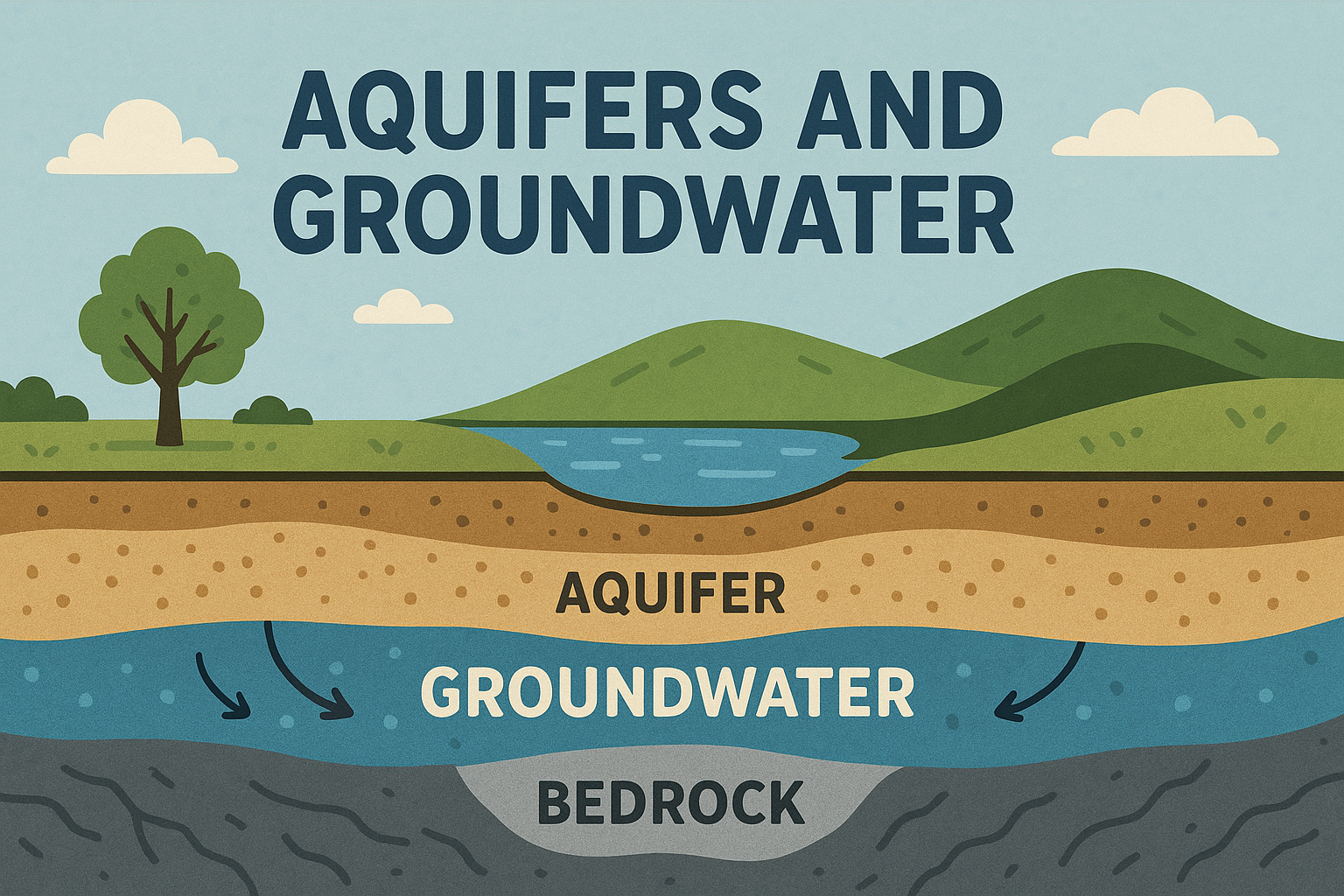

What Is an Aquifer?
An aquifer is an underground layer of permeable material (such as sand, gravel, or fractured rock) that holds water and allows it to flow. In simple terms, an aquifer is like a giant sponge beneath the ground – water fills the pores and cracks in the soil or rock, much as water saturates a sponge. When we drill a well into an aquifer, we are essentially “sucking” water out of these water-filled spaces in the earth materials (imagine drawing water from a soaked sponge). Aquifers vary widely in size and capacity; some are small local sand pockets, while others span multiple states.
It’s important to clarify a common misconception: aquifers are not vast underground lakes or rivers (except in special cave systems). Rather, the water is dispersed through the tiny voids in the rock or sediment. In some aquifers (particularly those in limestone areas), large channels and caverns can form, but even then the water occupies cracks and openings in the rock, not open “underground oceans.”
Types of Aquifers: Confined vs. Unconfined
Aquifers come in different types, primarily unconfined and confined, based on how they are bounded by impermeable layers:
- Unconfined Aquifer (Water Table Aquifer): An unconfined aquifer has its upper surface as the water table, which is open to the atmosphere. This means there is no impermeable layer above it – rain and surface water can directly infiltrate down to recharge it. The water level in an unconfined aquifer’s well will be at the same height as the water table. Unconfined aquifers are often near the ground surface and will rise and fall with precipitation and drought. They are the first to respond to seasonal changes; for example, during a drought the water table can drop, reducing well yields or even causing shallow wells to go dry.
- Confined Aquifer: A confined aquifer is sandwiched between layers of low-permeability material (like clay or dense rock) above and below. These confining layers trap water under pressure. When a well taps a confined aquifer, the water level in the well rises above the top of the aquifer – sometimes even flowing out at the surface – due to this pressure. Such wells are called artesian wells if the water flows naturally. Confined aquifers are typically deeper than unconfined ones and are replenished (recharged) more slowly, often only where the aquifer’s layer is exposed at the surface or through slow leakage. Because the water in a confined aquifer is under pressure, the aquifer remains fully saturated; water released by pumping comes from elastic expansion of the water and the aquifer matrix. This also means confined aquifers can deliver water even when they are deep and the overlying land is dry at the surface.
To visualize the difference, imagine a bowl of water covered tightly with plastic wrap. The water under the wrap is like a confined aquifer – under pressure and not directly open to the air – whereas a bowl without a cover is like an unconfined aquifer, open to the air and directly refilled by any water poured in. In the ground, the “wrap” is the confining layer. When that confining layer is absent or broken, the aquifer is unconfined and its water table can move up or down freely with recharge or discharge.
Most aquifers used for water supply are either unconfined or confined. There are also local situations like perched aquifers, which occur when a smaller water-bearing zone sits above a local impermeable layer, separate from the main groundwater below. These perched zones can provide water to a shallow well but are usually limited in extent and can dry up seasonally. In general, however, when we discuss major groundwater resources, we are talking about the broad confined or unconfined aquifers.
How Groundwater Is Stored and Moves
Groundwater is stored in the tiny spaces within geological formations. Two properties are key: porosity (how much open space is in the material) and permeability (how connected those spaces are, allowing water flow). Different geologic formations have very different capacities to hold and transmit water:
- Sand and Gravel: Unconsolidated sands and gravels have high porosity and relatively high permeability, making excellent aquifers. Water moves through the interconnected pore spaces between grains. Many productive shallow aquifers (for example, river valley aquifers or glacial deposit aquifers in the northern U.S.) consist of sand/gravel and can yield a lot of water to wells.
- Sandstone or Conglomerate: These consolidated sedimentary rocks can also be good aquifers if they have enough pore space. Groundwater resides in the pore spaces between the rock grains. The cementation of the rock can reduce pore space somewhat, but some sandstones are quite porous and permeable.
- Limestone (Karst): In carbonate rocks like limestone, groundwater can dissolve the rock over time, enlarging cracks and conduits. This leads to karst aquifers with caves and solution channels. Groundwater in karst moves quickly through these channels, feeding large springs. Karst aquifers (like Florida’s Floridan Aquifer) often have very high permeability in certain pathways – water can travel miles in a day through underground rivers – but they may have lower porosity in the rock matrix itself. The water storage is often in the cracks and cavities. Karst aquifers are very productive but also vulnerable to contamination because water travels fast and with little filtration through soil.
- Fractured Igneous and Metamorphic Rock: In crystalline rocks (granite, basalt, etc.), the rock itself has almost no pore space (very low porosity). Groundwater is stored and moves mainly through fractures, joints, and faults in the rock. These fractured rock aquifers can supply water, but usually in more limited amounts unless the fracture network is extensive. For example, in New England and other mountainous regions, many wells are drilled into fractured bedrock – they may yield enough for a household or small community, but the output is generally much lower than a large sand aquifer.
- Clay and Shale: These materials have high porosity (they can hold a lot of water), but extremely low permeability – the pores are so small and not well connected that water hardly moves. Clays and shales act as aquitards or confining layers, slowing down the movement of water. They can trap water above or below, creating conditions for confined aquifers.
In an aquifer, groundwater is always slowly on the move. Gravity and pressure differences drive the flow. Water generally percolates down in high areas (recharge zones) and flows through the aquifer toward lower areas (discharge zones) where it might emerge as springs, seeps, or into rivers, lakes, or wetlands. In large aquifers, this movement is usually very slow – often on the order of inches to feet per day, or even feet per year in some deep aquifers. (An exception is karst, where underground streams can flow much faster.) Groundwater flow can be visualized as a kind of subsurface river basin: rain enters in upland areas, moves through the aquifer, and comes out downgradient.
One key concept for groundwater movement is the water table (for unconfined aquifers) and the potentiometric surface (for confined aquifers). The water table is the level at which the ground is fully saturated; below this depth, all pore spaces are filled with water. The water table often roughly mirrors surface topography – higher under hills, lower in valleys – but much gentler in slope. In confined aquifers, since the water is under pressure, we refer to the potentiometric surface (or piezometric surface), which is the height to which water will rise in a well. Understanding these levels is crucial for well drilling and groundwater management, as they indicate how deep wells must go and how pumping will affect the aquifer.
Regional Groundwater: Why Some Areas Have More (or Better) Water
Not all aquifers are created equal. The availability and quality of groundwater vary greatly across the United States due to differences in geology, climate, and recharge. Here are a couple of real examples illustrating these differences:
The Ogallala Aquifer (High Plains Aquifer): This is one of the largest aquifer systems in the U.S., underlying about 174,000 square miles across eight states from South Dakota down to Texas. It is a massive unconfined aquifer composed mostly of sand, gravel, and sediments deposited over millions of years. The Ogallala holds an estimated *3 trillion* gallons of water – enough to cover the entire state of Texas in a foot of water, as one analogy puts it. It has been a tremendously productive water source; roughly 40% of all groundwater used for U.S. irrigation comes from the Ogallala Aquifer. In places like Nebraska and Kansas, this groundwater has enabled a huge agricultural industry in an otherwise semi-arid region.
However, the Ogallala also highlights challenges. Much of the High Plains region receives modest rainfall, and natural recharge of the aquifer is slow. In many areas, water is being pumped out faster than it is replenished. Since the mid-20th century, intensive irrigation has led to significant declines in the water table in parts of the Ogallala. Some areas (especially in Texas and Kansas) have seen water level drops of over 100 feet over decades. This is unsustainable and has prompted conservation measures and more efficient irrigation practices. The Ogallala’s northern parts (e.g. under Nebraska) have fared better, with ample saturated thickness and even stable or rising water levels in places, but the southern parts are under stress. The lesson here is that even “aquifer supergiants” are not infinite – careful management is needed to prolong their life.
Florida’s Karst Aquifers (Floridan Aquifer System): In contrast to the High Plains, Florida sits atop a thick sequence of limestone that makes up the Floridan Aquifer, one of the most productive aquifers in the world. This aquifer is largely confined by clay layers in some areas and unconfined in others, and it is recharged by abundant rainfall in the region. Over thousands of years, slightly acidic rainwater has dissolved pathways through the limestone, creating a true karst network of cavities and tunnels. As a result, Florida has over 1,000 freshwater springs – more than any other region – fed by groundwater under pressure in the Floridan Aquifer. Some springs (first-magnitude springs) each discharge over 64 million gallons of crystal-clear water per day, forming rivers like the Silver and Weeki Wachee. This reflects not only the aquifer’s large volume, but also high recharge rates (particularly in central and north Florida where sinkholes and sandy soils allow water to infiltrate quickly).
The groundwater quality in Florida’s karst is historically very high – the water is naturally filtered through sand and rock and often has excellent clarity. However, karst is a double-edged sword: because water moves quickly, it can carry pollutants from the surface with little filtration. Nitrate from fertilizers and waste has become a concern for some springs, and sinkholes (caused by collapsing caverns when water levels fluctuate) are a hazard. Compared to many regions, though, Florida enjoys relatively abundant and renewable groundwater, which supplies drinking water to millions of residents and supports agriculture and industry.
Other Examples: Many regions have their own unique groundwater situations. In the upper Midwest, for instance, glacial aquifers (sands and gravels left by past ice ages) provide plentiful water – these are the source of water for many farm irrigation systems and rural communities in states like Minnesota and Michigan. In contrast, much of New England relies on smaller fractured-bedrock aquifers; wells there might yield only a few gallons per minute, adequate for homes but not large-scale irrigation. In arid parts of the Southwest (Arizona, Nevada), groundwater is often found in deep alluvial basins or ancient rock fractures and is sometimes brackish or contains natural contaminants (like arsenic) due to long residence times and limited flushing. Coastal regions have productive aquifers (for example, the coastal plain aquifers of the Southeast), but overpumping near the shoreline can lead to saltwater intrusion – a problem where seawater contaminates the aquifer. Finally, California’s Central Valley has a thick sequence of alluvial aquifers that made it an agricultural powerhouse; yet decades of heavy pumping have caused groundwater levels to fall and even led to land subsidence (the land sinking as water is removed from clay layers). Each of these cases shows how geology and climate dictate groundwater availability and why understanding local aquifers is so important.
The Importance of Recharge Areas and Sustainable Water Tables
Groundwater is renewable only if the water taken out is balanced by water going back in. Recharge areas are regions where surface water (from rain, snowmelt, rivers) infiltrates down into an aquifer. These areas are the lifelines for an aquifer’s long-term health. If recharge areas are impaired or diminished, the aquifer will effectively shrink over time.
Human activity can greatly affect recharge. Urbanization, for example, often covers critical open land with roads, parking lots, and buildings, preventing rainfall from soaking into the ground. Instead, water runs off quickly into storm drains and rivers, bypassing the aquifer. By contrast, maintaining green spaces, wetlands, and permeable soils in recharge zones allows water to percolate down and refill groundwater reserves. Land use planning is key: protecting key recharge zones (for instance, forested areas on a limestone ridge that feeds a karst aquifer, or the sandy soils above a shallow water table) can ensure the aquifer continues to receive water.
Sustainable water-table management means pumping groundwater at a rate that can be sustained in the long run without depleting the aquifer. For professionals, this often involves calculating the safe yield of an aquifer (how much can be pumped annually without long-term decline) and monitoring water levels over time. In practice, sustainable management can include:
- Monitoring Wells: Regularly measuring groundwater levels in observation wells to track trends. If levels drop year after year, it’s a warning sign that usage may be too high or recharge too low.
- Managed Pumping Regimes: Spacing out pumping wells and scheduling pumping to minimize interference. In some communities, multiple wells alternate use to allow aquifers to recover.
- Artificial Recharge: In some areas, humans actively help recharge aquifers by methods like infiltration basins, recharge wells, or routing excess surface water (during wet periods) into the ground. This is becoming more common in places like California and Arizona, where storing water underground during wet years can buffer against drought years.
- Preventing Contamination: Protecting recharge areas from pollutants is as important as ensuring water quantity. Once an aquifer is contaminated (for example, by industrial chemicals, agricultural runoff, or leaking fuel tanks), it can be extremely difficult and costly to clean up. Zoning and regulations often restrict hazardous land uses over important aquifers or wellhead protection zones.
Groundwater professionals also pay attention to the connection between aquifers and surface water. Over-pumping an aquifer can not only lower the water table, but also reduce flow to springs and streams (since those flows are often fed by groundwater discharge). For example, if wells pull too much water from a shallow aquifer connected to a river, the river may shrink or dry seasonally because the groundwater that normally feeds it is diminished. Sustainable management tries to balance human needs with environmental needs, keeping water tables at levels that support both wells and natural ecosystems.
Tips for Well Owners and Professionals to Understand Local Aquifers
Whether you’re a private well owner, a drilling contractor, or a water system planner, knowing the characteristics of your local aquifer can guide better decisions. Here are some tips and resources to deepen your understanding of the groundwater in your area:
- Study Well Logs: Well logs (also called drilling reports or borehole records) are a treasure trove of information. A typical well log will record the depth of the well, the types of soil/rock layers encountered (stratigraphy), the depth at which water was struck, the water level (static level) in the well, and sometimes the tested yield (gallons per minute). By reviewing logs of your well and nearby wells, you can identify which aquifer your well taps, how deep the water table is, and what the aquifer is made of. Many states maintain online databases of water well logs submitted by drillers – these can often be searched by location. For example, a log might show that between 50–120 feet the driller hit sand and gravel (an aquifer), with water level at 30 feet below ground, indicating an unconfined sand aquifer.
- Consult Hydrogeologic Maps and Atlases: Geological surveys (state or USGS) often publish maps of aquifers or groundwater resources. These may include aquifer maps (showing the extent of major aquifers), water table maps (contour maps of groundwater levels), and cross-sectional diagrams of local geology. By reviewing these, you can see the “big picture” of groundwater in your area – for instance, the map might show that a valley has a thick alluvial aquifer, or that a town is sited over a limestone karst area. The USGS’s “Principal Aquifers of the United States” map is a great starting point to see the major aquifers nationally. On a more local scale, many states have a “Groundwater Atlas” or similar report. These resources help in understanding how extensive an aquifer is and how water moves regionally.
- Use Online Tools and Data Portals: Take advantage of online tools that aggregate groundwater data. The U.S. Geological Survey provides public data for thousands of monitoring wells nationwide (through the NWIS – National Water Information System). You can look up water-level trends for observation wells in your county to see if levels are rising, stable, or declining. Some states or water management districts have interactive maps showing aquifer recharge areas, well locations, or water quality zones. Additionally, there are independent tools and databases, such as the DrillerDB well log map (mentioned below), where you can explore well data across the country. These tools can help identify how deep wells typically are in your area, what they yield, and what aquifer they draw from.
- Connect with Local Experts: Don’t underestimate the value of local knowledge. Hydrologists, groundwater consultants, and even veteran well drillers in your area often have a wealth of practical understanding about the aquifers – for example, they might know that “the sandstone here yields sulfur-smelling water around 200 feet” or “the best wells are in the valley’s gravels, not the hillside rock.” State environmental or water resource agencies can often answer questions or provide reports; universities or county extension offices might have hydrogeology experts as well.
- Observe and Maintain Your Well: If you own a well, keep an eye on its performance and condition as a gauge of the aquifer. Check the static water level in the well annually if possible (some well owners install a simple gauge or hire a professional to measure). A dropping water level over years could indicate either overuse or drought impacts. Also note any changes in water quality – like increased sediment, changes in taste, or seasonal fluctuations – as these might reflect changes in the groundwater source. Regular water testing can detect issues (e.g., rising nitrate might suggest agricultural impacts to the aquifer). By tracking these factors, you become an observer of your aquifer’s health.
Conclusion
In summary, aquifers are the hidden reservoirs that hold much of the freshwater critical to our communities and industries. By understanding what aquifers are and how they work – the difference between confined and unconfined systems, the way water is stored in rock and soil, and the regional variations in groundwater availability – water professionals can make informed decisions to protect and utilize this resource wisely. Areas like the Ogallala Aquifer and Florida’s karst country illustrate both the immense value of groundwater and the need for responsible management. Protecting recharge areas and maintaining sustainable pumping levels are essential actions to ensure that our wells don’t run dry and that future generations inherit a healthy groundwater supply.
For well owners and drilling professionals, knowledge truly is power. Utilizing well logs, maps, and data from agencies can demystify your local hydrogeology and guide better well planning and water use. As you engage with your aquifer – whether by drilling a new well or managing an existing water system – remember that groundwater is a shared resource. What one person or community does can affect neighbors and the environment, especially when aquifers span large areas.

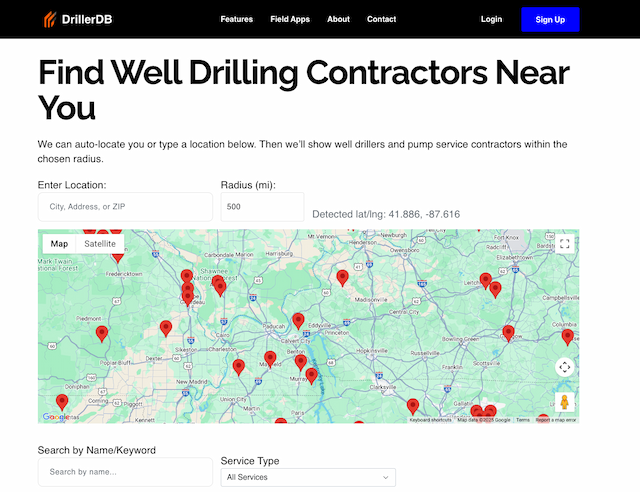

Call to Action: To explore more about your local aquifers and wells, take advantage of the resources available. A great starting point is to use interactive tools and databases that compile well information. For example, check out the DrillerDB Well Map, which offers a nationwide interactive map of well logs. It’s an invaluable resource for planning or research, allowing you to visualize groundwater data across different regions. Continue learning, stay curious about your groundwater, and work together towards sustainable water management.
