Water Well Drilling in the U.S.: The Driller’s Role, Process, and History

Over 43 million people in the U.S. rely on private wells for drinking water. This guide explores the skilled trade responsible for accessing this vital resource, from the people who do the work to the step-by-step process and rich history of the profession.

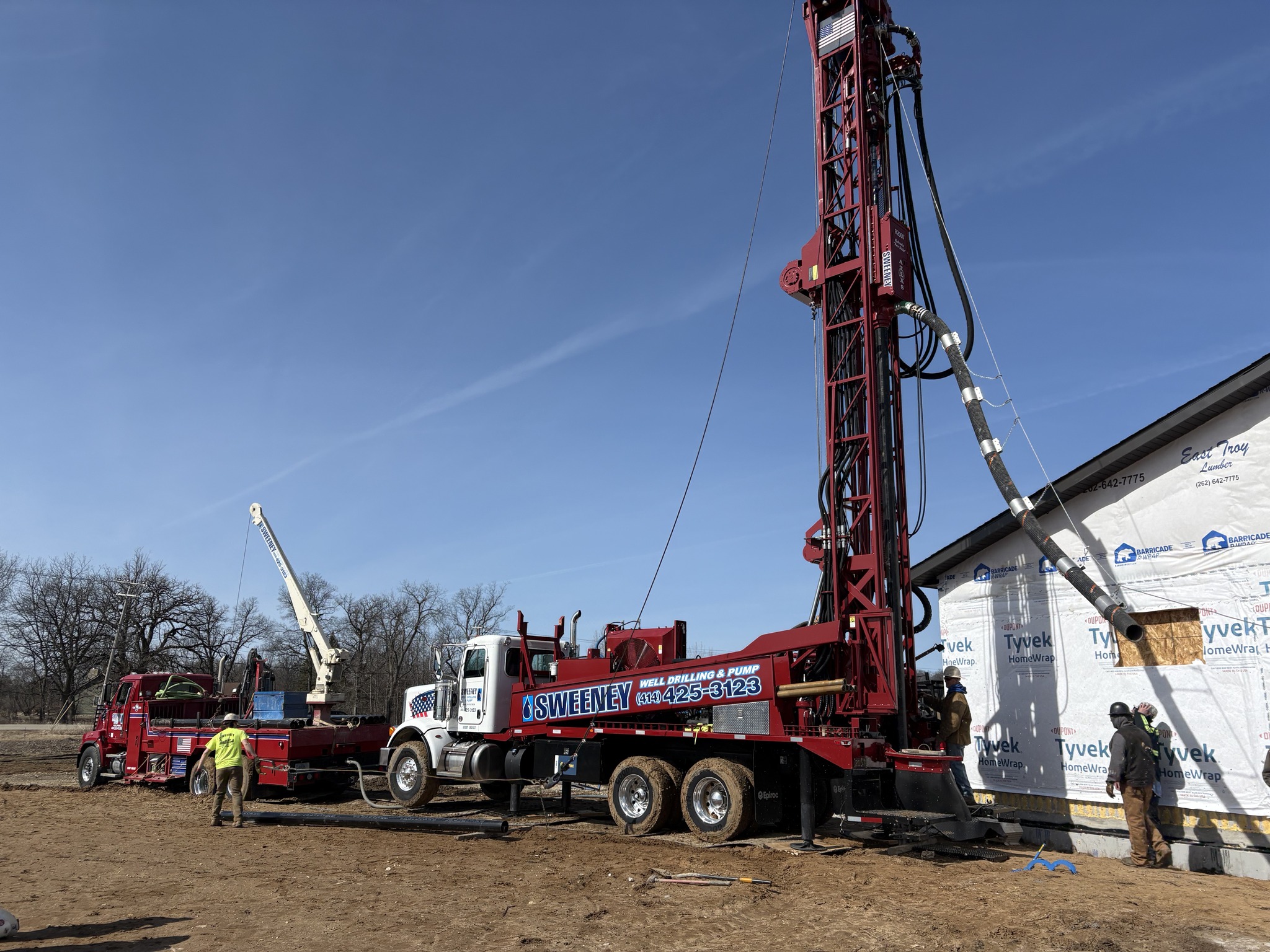

Water well drilling rig completing a residential well

The Life and Work of a U.S. Water Well Driller

Water well drillers are highly trained tradespeople who operate heavy machinery to access underground water sources. The work is demanding, often involving 10-12 hour days in all weather conditions, frequently in rural or remote locations. Drillers must possess a blend of mechanical skill and geological knowledge, as every job site presents unique soil and rock conditions. They bear the significant responsibility of ensuring wells are constructed safely to prevent contaminants from entering an aquifer.

Regulation and Licensing

Professionalism is paramount in the drilling industry. The majority of U.S. states mandate that water well drillers be licensed and adhere to strict well construction regulations. For instance, Texas requires a state license for anyone drilling a well or installing a pump. Similarly, New York requires well drilling businesses to register with the Department of Environmental Conservation and follow Department of Health standards. It is common for states to require drillers to file a detailed well log or completion report for every new well. These regulations protect groundwater resources and hold the profession to a high standard.

A Focus on Safety

Drilling sites contain numerous hazards, including heavy equipment, high-pressure hoses, and deep boreholes. Electrical risks are particularly significant; a CDC study found that 21 drilling fatalities in the 1990s were due to electrocution, often from a rig's mast contacting overhead power lines. Consequently, drillers follow rigorous safety protocols, such as using the "Call 811" service to locate buried utilities before digging and maintaining a safe distance from power lines. Despite the physical demands and dangers, many drillers find the work deeply satisfying, as they provide communities with a reliable source of water.

The Water Well Drilling Process: A Step-by-Step Guide

Drilling a well is a precise, multi-step process that requires careful planning and adherence to regulations. Here is an overview of how professionals get the job done.

  1. Site Selection & Planning
    The driller selects an optimal well location, considering access for the large drill rig and maintaining a safe distance from potential contamination sources like septic tanks or livestock pens. Local geology and records from nearby wells help estimate the required drilling depth to reach a productive aquifer. Proper siting is critical for ensuring the well provides safe, clean water.
  2. Permitting and Paperwork
    Before work begins, permits must be secured from a state or local authority, as drilling is illegal without prior approval in most states. Typically, only a licensed well driller is authorized to perform the work. The permits may specify conditions like minimum distances from septic systems or required construction features.
  3. Mobilization & Rig Setup
    The crew transports the drilling rig and support trucks carrying water, casing, and tools to the site. The rig is positioned, and its derrick (mast) is raised vertically. Safety is crucial during this stage; the crew avoids overhead power lines and uses the 811 "Dig Safe" service to locate underground utilities.
  4. Drilling the Borehole
    The drilling method varies by ground condition.
    • Mud Rotary: In soft materials like sand and clay, a rotating drill bit grinds the earth while drilling fluid (mud) is pumped down to lift cuttings to the surface and prevent the hole from collapsing.
    • Air Rotary: For hard rock, drillers often use compressed air to power a pneumatic hammer bit that fractures the rock, while the air blows the chips out of the hole.
    • Cable-Tool (Percussion): An older, slower method where a heavy bit is repeatedly dropped to pulverize material.
    Drillers add sections of pipe to go deeper, often reaching depths of 100 to 500 feet for a domestic well, until a water-bearing zone is identified.
  5. Casing Installation
    Once the target depth is reached, a casing—a pipe made of steel or PVC—is lowered into the borehole. The casing serves to keep the well open and seal off contaminants from shallow groundwater. A well screen is typically attached to the bottom section to allow water to enter while filtering out sand and sediment. The casing extends a foot or two above the ground, where it will be fitted with a sanitary cap.
  6. Grouting (Sealing the Annulus)
    The space between the outside of the casing and the borehole wall, known as the annulus, must be sealed. A grout, typically a slurry of cement or bentonite clay, is pumped into this gap to create an impermeable barrier. This critical step prevents surface water from seeping down the outside of the casing into the well and is legally required by most state well codes. An inspector may be required to witness the grouting process.
  7. Well Development & Cleaning
    The driller "develops" the well by cleaning and flushing it to remove drilling mud and fine particles. This is done using techniques like high-rate pumping or injecting bursts of air to agitate the water. Initially, the water is often muddy; development continues until the water runs clear. This process is vital for maximizing the well's yield and ensuring the pump is not damaged by sediment.
  8. Pump Installation & Final Steps
    A submersible electric pump is typically lowered into the well casing to bring water to the surface. A pitless adapter is often installed on the side of the casing below the frost line, allowing water to be piped underground to the plumbing system. The wellhead is secured with a vermin-proof cap. The system is then tested, and the well is disinfected with a chlorine solution to kill any bacteria introduced during construction. Finally, the driller files an official well log (completion report) with state authorities, documenting the well's construction details.

A Brief History of Water Well Drilling

Humans have been creating wells for millennia; archaeologists have found hand-dug wells over 8,000 years old. In ancient China, drillers were using percussion techniques with bamboo casings by 400 BC. However, the modern profession emerged in the 19th century.

In the U.S., the first mechanically drilled well was completed in 1808 by the Ruffner brothers in present-day West Virginia, who were drilling for salt brine using a cable-tool rig. By the 1820s, entrepreneurs like Levi Disbrow were applying these techniques to drill water wells for farms and towns.

Technology advanced throughout the century. A significant shift occurred in 1882 when the Baker brothers drilled the first successful well using a rotary rig in the Dakota Territory. Rotary drilling technology advanced rapidly, aided by Howard Hughes Sr.'s invention of the roller-cone drill bit in 1908-1909, which greatly improved the ability to drill through hard rock. By the early 20th century, rotary drilling became the dominant method because it was faster and could reach greater depths.

Following World War II, a surge in suburbanization created high demand for water wells, and many family-run drilling companies were established. The National Ground Water Association (NGWA) was founded in 1948 to improve standards and share knowledge. By the late 20th century, the profession had matured into a licensed, regulated trade across the U.S.. Today's drillers use cutting-edge rigs with computerized controls, continuing a legacy of ingenuity and hard work to provide communities with water.

Frequently Asked Questions

How deep do you typically have to drill for a water well?

The depth of a well depends on local geology and the water table. While it varies greatly by location, domestic water wells in the U.S. commonly range from 100 to 500 feet deep. A professional driller will consult local geological data and nearby well logs to estimate the depth required to reach a productive aquifer.

Can a homeowner drill their own well?

Generally, no. Most jurisdictions require that a licensed well driller perform the work to ensure safety and compliance with regulations that protect groundwater resources.

What is the purpose of "grouting" a well?

Grouting involves pumping a cement or bentonite slurry into the annular space between the casing and the borehole wall. This creates an impermeable seal that prevents surface water or shallow, contaminated groundwater from migrating down the outside of the casing and entering the well.

Why is the water from a brand-new well often muddy?

Fine particles and drilling mud remain in the borehole after construction. During "well development" the driller flushes and cleans the well—often by pumping at a high rate or injecting bursts of air—until the water runs clear, ensuring optimal yield and preventing sediment damage to the pump.
